4.9-6.4GHz 5GHZ Antennas 30dBi WiFi Wlan ISM Band Antenna

Product Categories

XIANG JIA SHENG Technology Co., Ltd

Contact Now

Brand Name : XJS

Model Number : TDD-4965-30HV

Certification : ROHS CE

Place of Origin : Guangdong, China

MOQ : 20

Price : USD 59-65

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000+PCS+month

Delivery Time : 15-20 working days

Freq. Range : 4900-6400 MHz

Gain : 30dBi

HPBWH（Deg.） : 5.5°

HPBWV（Deg.） : 5.5 °

Polarization : H+V

F/B Ratio : ≥32dB

VSWR : ≤1.8

Impedance : 50Ω

Connector : N-female

Dimensions : Ф600mm

Contact Now

4.9-6.4GHz 5ghz 30dBi WiFi Wlan Mimo Dish 30dBi Antenna

TDD-4965-30HV is a ultra performance wideband dual polarized solid dish antenna with ultra electrical performance and mechanical stability, the parabolic dish antenna can be used in a wide variety of 4.9GHz and 6.4 GHz range (4.9/5.1/5.3/5.4/5.8/6.4GHz) wireless applications.

(2) N-Female connectors
Dual Polarization (horizontal and vertical) or for X-Polarization (+45° and -45°)
Aluminum reflector dish with UV stable light gray polymer finish

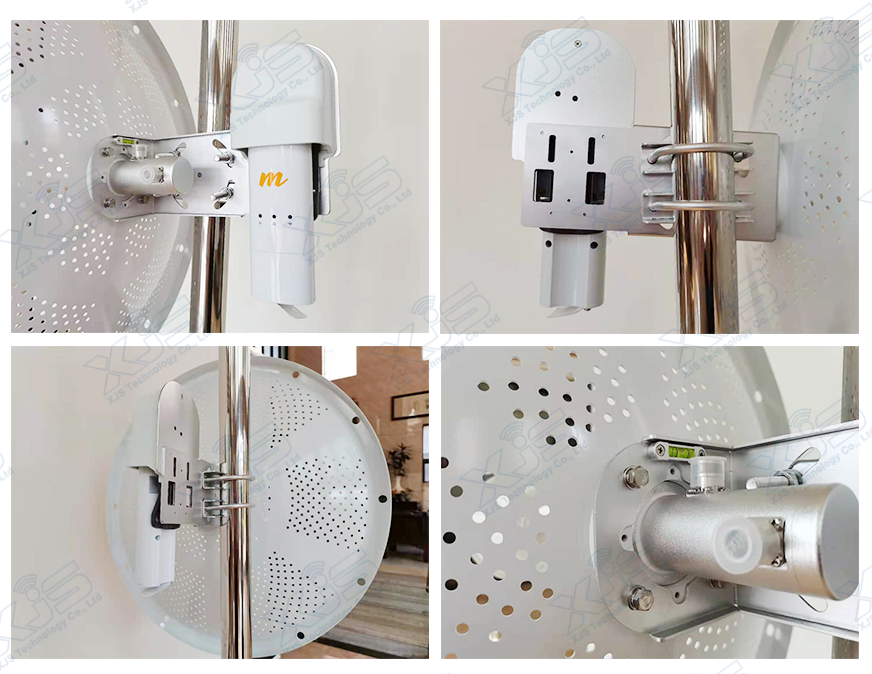

Includes tilt and swivel mast mount kit
Optional radome cover kits available

Electrical Specifications

Mechanical Specifications

RF Antenna Patterns

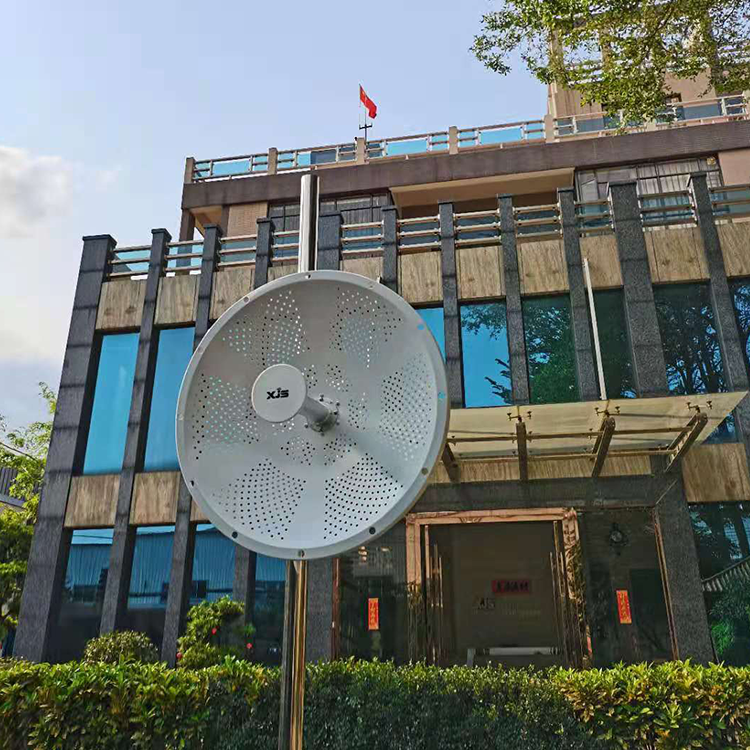

4.9-6.4GHz 5GHZ Antennas 30dBi WiFi Wlan ISM Band Antenna

Package Content

4.9-6.4GHz 5GHZ Antennas 30dBi WiFi Wlan ISM Band Antenna
